NYLON GF FR And Non FR granules

About NYLON GF FR And Non FR granules

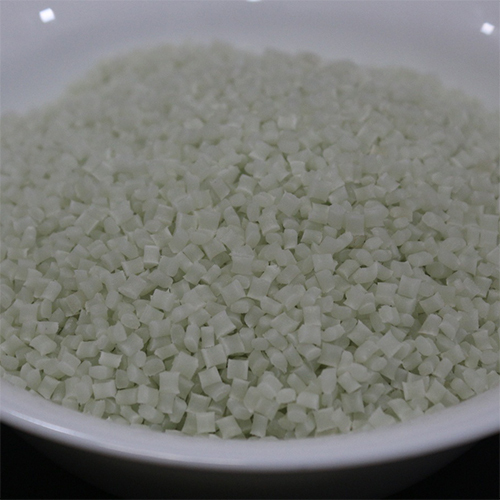

Nylon GF granules are thermoplastic polyamide (nylon) resin pellets that are reinforced with glass fiber (GF). The glass fiber significantly enhances the base nylons mechanical and thermal performance.

Key features of GF (glass-filled) nylon:

• Base polymer: commonly Nylon 6 (PA6) or Nylon 66 (PA66) (polyamides).

• Glass fiber loading: typically 10%50% by weight (e.g., GF30 means 30%).

• Greater stiffness and tensile strength vs. unfilled nylon.

• Improved heat resistance and dimensional stability during molding and use.

• Reduced warpage and shrinkage.

Typical applications:
Automotive structural parts, electrical housings, industrial machinery components, connectors, gear carriers, etc.

What Does FR Mean in Nylon GF FR?

FR = Flame Retardant. This refers to nylon granules compounded with flame-retardant additives that improve fire safety performance.

FR grades are engineered to achieve specific flame resistance standards, typically measured by UL94 (e.g., V-0, V-1):

• V-0: Self-extinguishes quickly with minimal burning (high flame resistance).

• V-1/V-2: Lower flame performance compared to V-0.

How FR works:
Flame-retardant additives (halogenated or halogen-free systems) in the compound modify how the material reacts to heat and flame reducing flammability, smoke, and heat release.

NYLON GF FR vs. NYLON GF Non-FR

Typical Composition (Illustrative example)

Nylon GF FR granules may contain:

• Nylon polymer base (PA6 or PA66)

• Glass fiber reinforcement (e.g., 1530%)

• Flame retardant additives (organic phosphorus, brominated systems, halogen-free systems)

• Processing stabilizers and other modifiers

Nylon GF Non-FR granules contain:

• Nylon base

• Glass fiber reinforcement

• Optional fillers (but no flame retardant system)

Performance Impact

Mechanical

• GF reinforcement improves stiffness, tensile strength, creep resistance, and thermal dimensional stability.

• When FR additives are included, mechanical strength can slightly decrease depending on additive type and loading.

Thermal & Flammability

• Non-FR nylon GF has typical thermoplastic behavior (melts and burns under flame).

• FR grade is engineered to resist ignition and self-extinguish, meeting safety standards such as UL 94.

Electrical

• FR grades are often used where electrical insulation and fire safety are critical (e.g., connectors, switchgear).

Summary Description

NYLON GF FR granules are engineered nylon (PA6 or PA66) pellets reinforced with glass fiber and compounded with flame-retardant additives to achieve specific fire resistance ratings (e.g., UL94 V-0). They combine structural performance with fire safety.

NYLON GF Non-FR granules are similar glass-fiber-reinforced nylon pellets without flame-retardant additives, primarily focused on mechanical strength and thermal stability for general engineering applications.
